How To Build Your Very Own Hobbit Hole

How to buld an earth bag building

This article is going to describe in detail how to build structures with earth bags.

Earth bag construction is ideal for making dome shaped structures.

Earth bag construction can be a wonderful way to build a small (or large) home. Earth bag domes are also incredibly simple to design and build.

These cute little structures can be adorned with a living roof, or covered in mud or plaster. They are structurally sound, and when complete can blend into the landscape thereby minimizing the effects on the environment. They’re also inexpensive to build and might be an option for those folks to build on a limited budget.

Let’s take a closer look at these amazing structures.

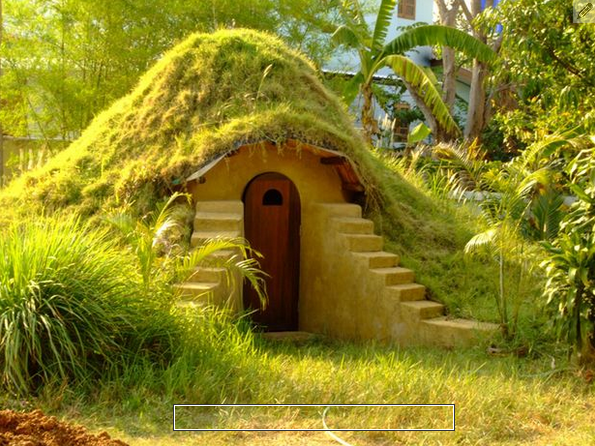

Build Your Own Hobit Hole

Image Source

This multi-purpose dome can serve as a storage shed or cool pantry above ground, or as a rootcellar or storm shelter below ground. No building permit is typically needed, because it is below the minimum size required by building codes, is not inhabited and is not attached to a residence.

Earthbag structures provide a cool space in summer and an escape from the cold in winter (ideal for humans and animals), which means this earthbag dome is well suited for many purposes, like a quiet space for relaxing or playing music, as well as those listed previously. Depending on your needs, the most practical combination of uses might be a rootcellar/cool pantry for daily use and a disaster shelter for emergencies such as tornadoes or hurricanes.

The key concept that makes earthbag domes work is corbelling. This means each course (each row) of bags is inset slightly from the course below. Corbelled domes made of adobe and stone have been built for thousands of years. The concept has been applied to earthbags in the last few decades.

Basic project information:
18’ exterior diameter; 8’ interior diameter; 11’ exterior diameter, 50 sq. ft. interior floor space; total cost of materials: $300, which is about $6/square foot.

Tools:
Tamper(s), round nose shovel(s), grape hoe or grub hoe (digging tool), 13” x 16” sheetmetal slider, knife, hammer, 2’ level, 2” x 4” x 10’ leveling board, tape measure, fencing pliers, handsaw, trowel, garden hose with spray nozzle, 6’ or 8’ stepladder

The following instructions assume you have cleared and leveled the site, removed topsoil, positioned fill soil around the building site to minimize work, dug a trench to stable subsoil, put about 12” of gravel in the trench, and added two stakes with string lines: a center stake with string line to measure the radius, and a stake in front of the door to measure the dome curvature. Bags or tubes can be used. We demonstrate bags, because they’re often available recycled for very low cost.

Head on over to page 2 for a couple of videos on how this is all done
